High-voltage System Components

Chapter 7 · Manual page 298

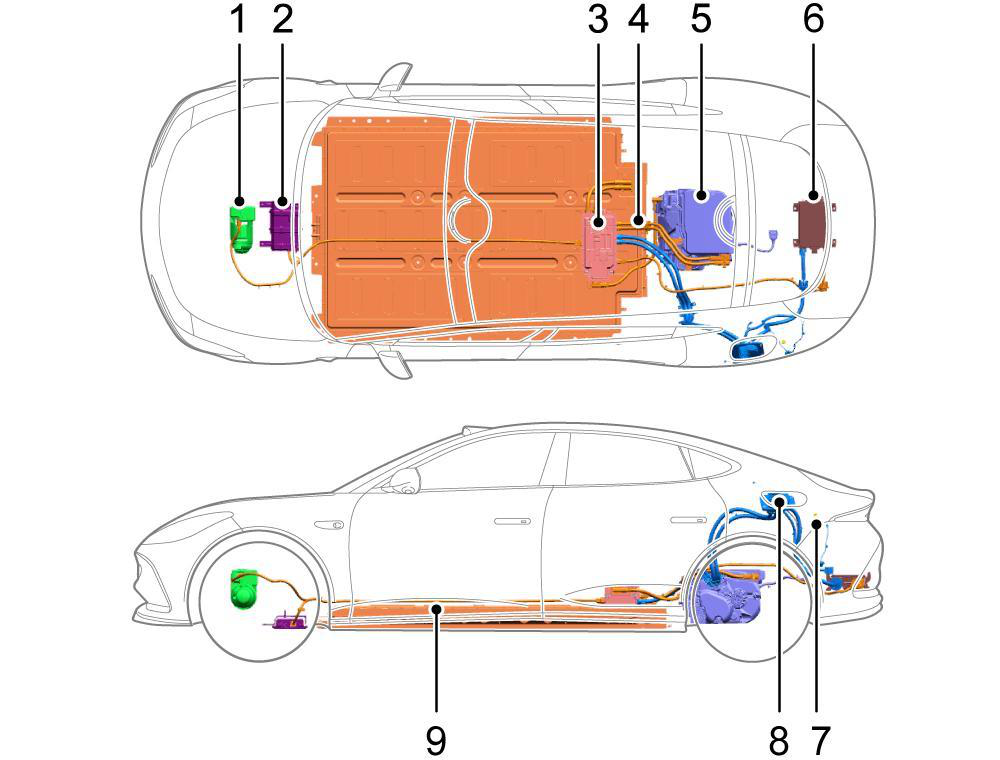

High-voltage System Components - 2WD Diagram showing: Electric A/C Compressor

  1. Electric A/C Compressor
  2. Battery Heater
  3. High-voltage Power Distribution Unit
  4. High-voltage Harness
  5. Rear Electric Drive Unit
  6. Combined Charging Unit
  7. Manual Service Disconnector
  8. Charging Port

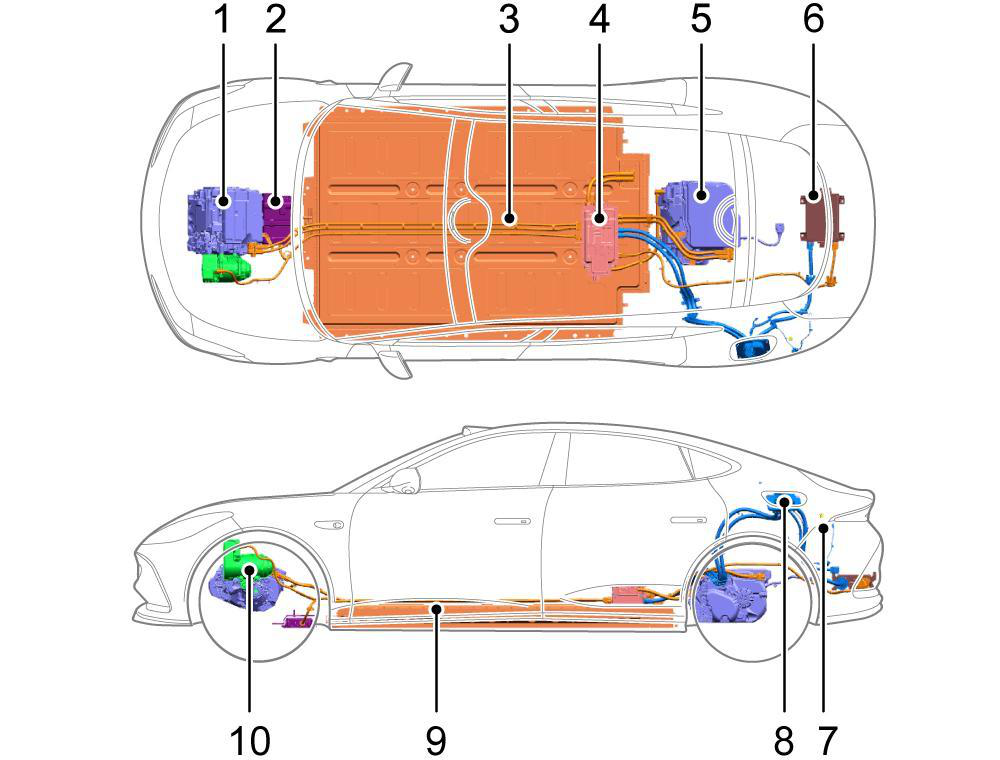

  9. High-voltage Battery Pack High-voltage System Components - 4WD Diagram showing: Front Electric Drive Unit
  10. Front Electric Drive Unit
  11. Battery Heater
  12. High-voltage Harness
  13. High-voltage Power Distribution Unit
  14. Rear Electric Drive Unit
  15. Combined Charging Unit
  16. Manual Service Disconnector
  17. Charging Port
  18. High-voltage Battery Pack
  19. Electric A/C Compressor
