Towing Vehicle

Chapter 6 · Manual page 278

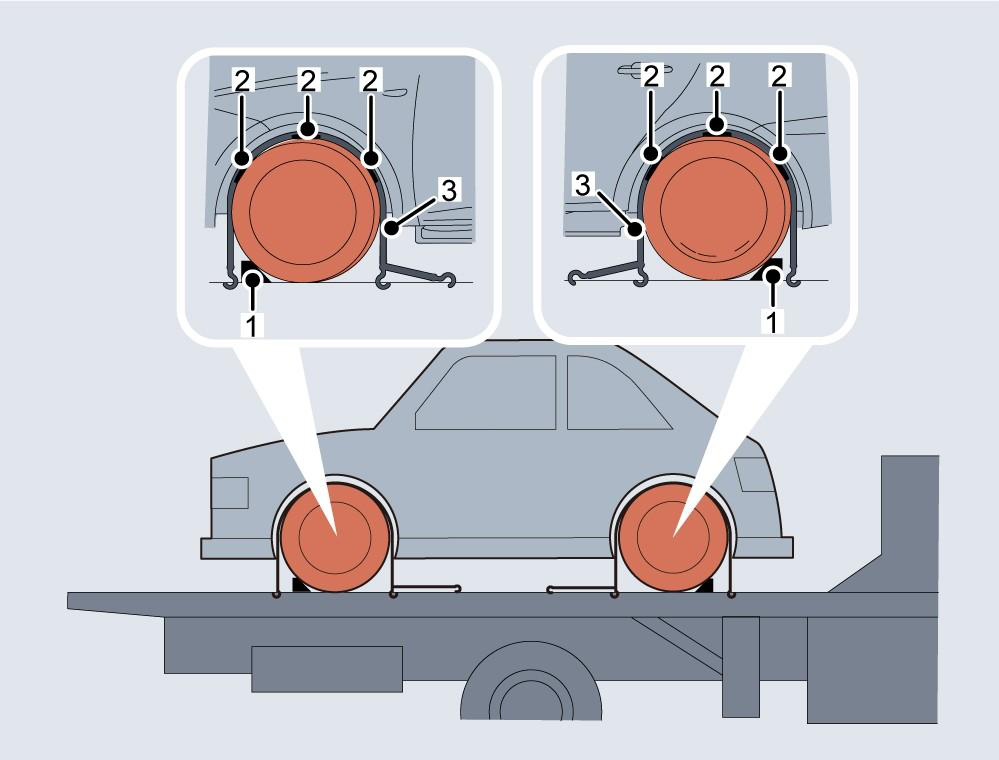

If your vehicle needs to be towed, a special transporter is recommended. Secure the vehicle on the transporter as follows: Diagram showing: Before transporting the vehicle, make sure that the electronic parking brake system (EPB) is enabled. Refer to "Electronic Parking Brake (EPB)" in "Braking and Parking" section for details.

  1. Before transporting the vehicle, make sure that the electronic parking brake system (EPB) is enabled. Refer to “Electronic Parking Brake (EPB)” in “Braking and Parking” section for details.
  2. Place the wheel chocks (1) as shown in the figure, and then position the anti-slip rubber blocks (2) around the wheel.
  3. Fit the lashing straps (3) around the wheels and secure them on the transporter. Fasten the straps to secure the vehicle.
