System Description
Chapter 3 · Manual page 98

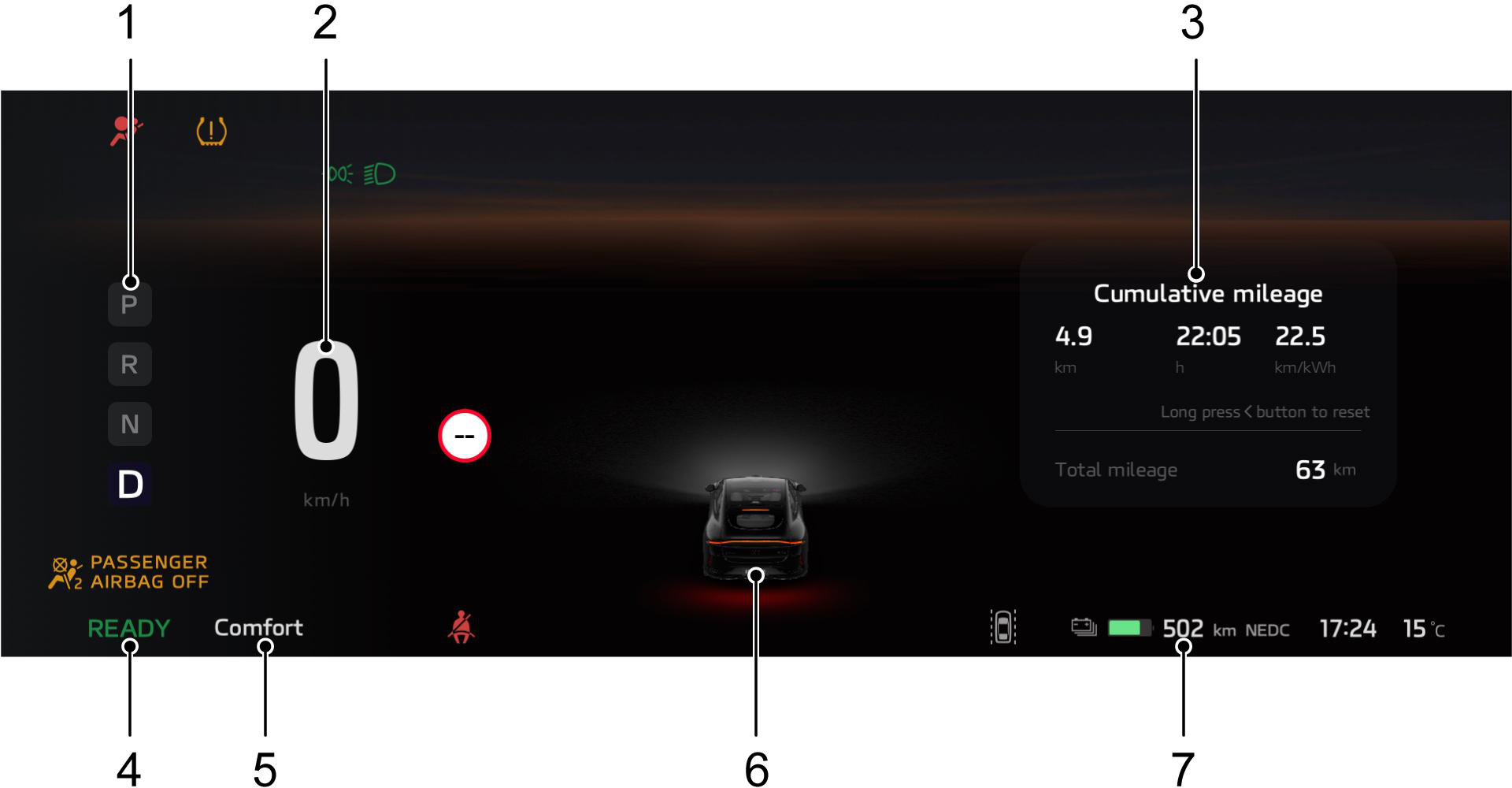

Instrument display
- Gear display
- Vehicle speed display
- Card information area
- System ready indicator
- Driving mode
- Mixed reality vehicle info
- Driving range
Card information includes fixed information and temporary information; Fixed information includes: “Energy consumption”, “Current Mileage”, “Cumulative mileage”, “Tyre pressure”, “G value”, and “Moment distribution of front and rear axles”; Temporary information includes: “Alarm card”, “Distance adjustment”, “Call reminder”, etc.

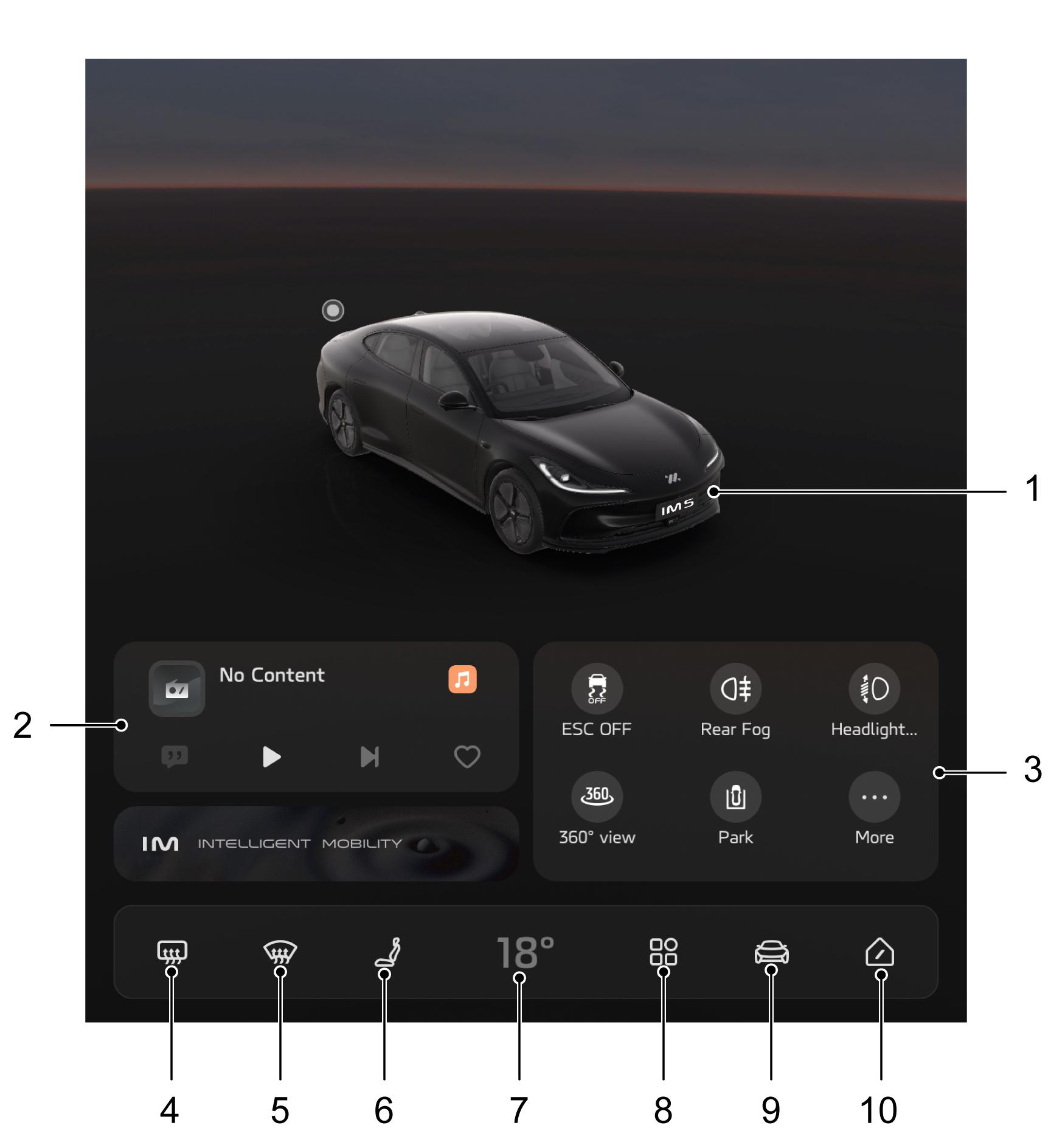

Central screen display
- 3D vehicle model
- Entertainment
- Quick Controls menu
- Rear windscreen demist
- Windscreen demist
- Seat Menu
- Air conditioning
- App list
- Settings
- Home button
