Charging Port
Chapter 4 · Manual page 147
The charging ports configured in different countries and regions may vary.

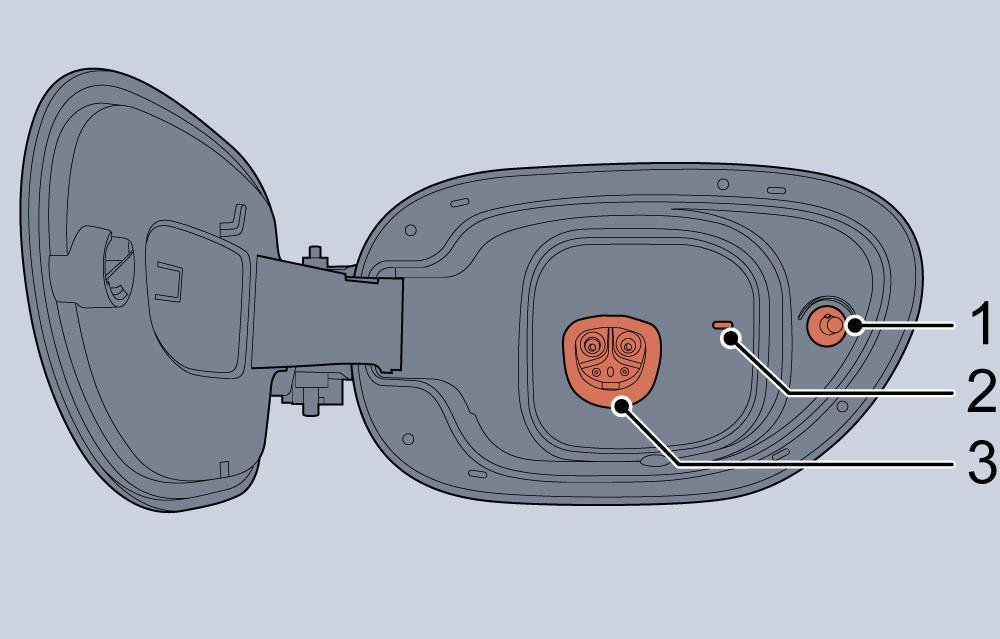

Charging port type 1:
- Charging port door mechanical switch
- Charging state indicator
- Slow&Fast charging port
- White - Welcome
- Blue - Charging cable connected
- Orange - Charging cable not connected
- Green - Charging normal
- Red - Charging failure

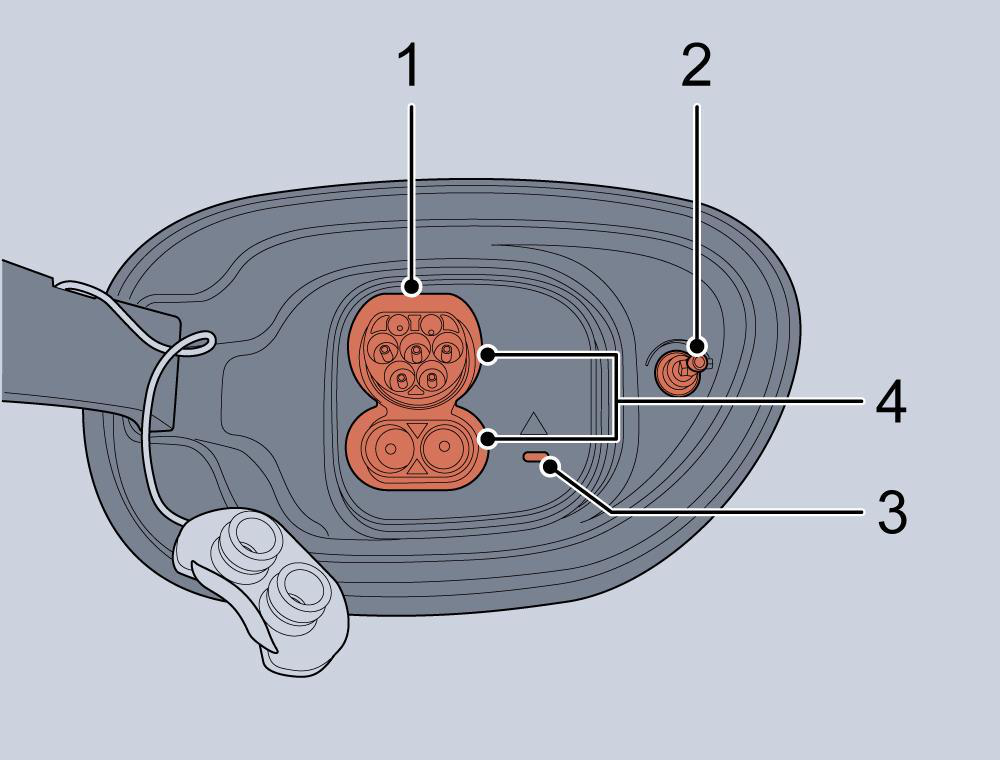

Charging port type 2：
- Slow charging port
- Charging port door mechanical switch
- Charging state indicator
- Fast charging port
- White - Welcome
- Blue - Charging cable connected
- Orange - Charging cable not connected
- Green - Charging normal
- Red - Charging failure Precautions for AC or DC charging After opening the charging port door, check the charging identifier symbol on the plug cover. Check the charging connector identifier symbol on the AC or DC charger cable. After checking that the alphabetic characters of the charging identifier symbols match, proceed the next charging step.
Risk of failure, fire or injury etc. when using a charging connector with unmatched identifier symbols.
Electric charging identifier label symbol table
| Supply Type | Configuration | Type of Accessory | Voltage range | Identifier |
|---|---|---|---|---|
| AC | 7P | Vehicle connector and vehicle inlet | ≤480V |  |
| DC | 7P+2P 7P+2P | Vehicle connector and vehicle inlet | 50V–500V |   |
| DC | Vehicle connector and vehicle inlet | ≤1000V | ||

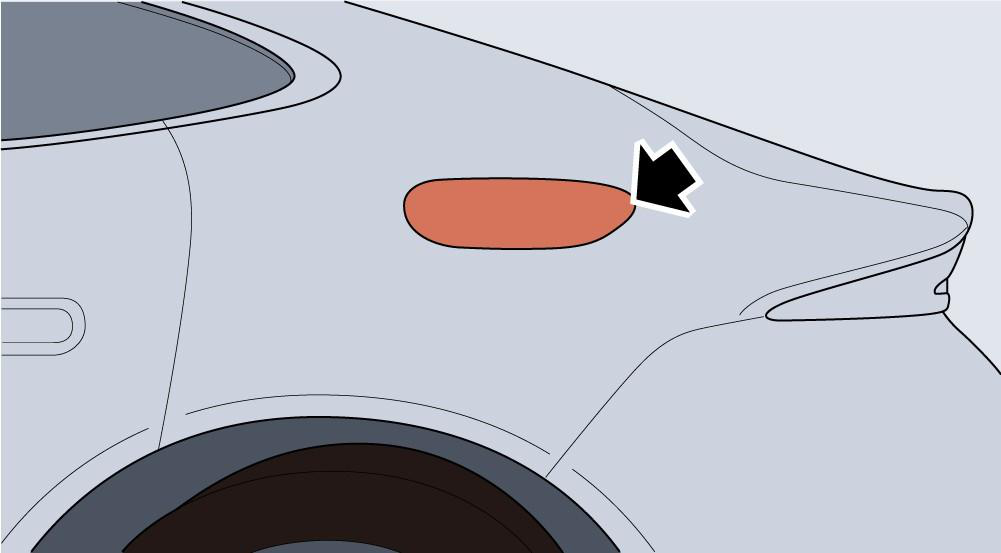

| Open charging port door The charging port door is on the rear left of the vehicle, and can be opened using the following methods: |
- When the vehicle is unlocked, if the user presses the upper right area of the charging port door (as shown in the figure below), open the charging port door.
When the charging port door is open, remove the waterproof cover for the fast charging port, and the charging port is visible.
If the charging port door is frozen and cannot open , it will be necessary to manually break the ice or open the door after the ice thaws. Do not attempt to open the door using force, since this will cause damage.
Do not wash with the charging port door open.
Close charging port door After charging is complete, the charging port door can be closed using the following steps:
- After charging is complete, remove the charge cable;
- Refit the dust cover, close the charging port door, and press the mechanical switch position of the charging port door to close the charging port door.
After the slow charging of the vehicle is completed, if the vehicle is locked, you can remove the charger cable after unlocking the vehicle; if the vehicle is not locked, you can remove the charger cable by pressing the door unlock button, or locking and unlocking the vehicle;.After the fast charging of the vehicle is completed, stop charging on the central screen or charging station, and then remove the fast charger; if the fast charger cannot be removed, you can follow the prompts on the charging station or consult the charging station service provider.
Charging port electronic lock The slow charging port has electronic lock function. In order to prevent children from contacting the charger or accidentally removing it during charging, after plugging the charger in the slow charging port, the electronic lock in the slow charging port will automatically be activated to lock the charge gun in position when certain conditions are met. In this case, attempt to remove the charge gun, forced removal of the charge gun will damage the vehicle. The vehicle must be unlocked before pulling out the charger.
After the vehicle is unlocked for a preset period of time, if the charger is still plugged into the slow charging port, the electronic lock will automatically re-engage.

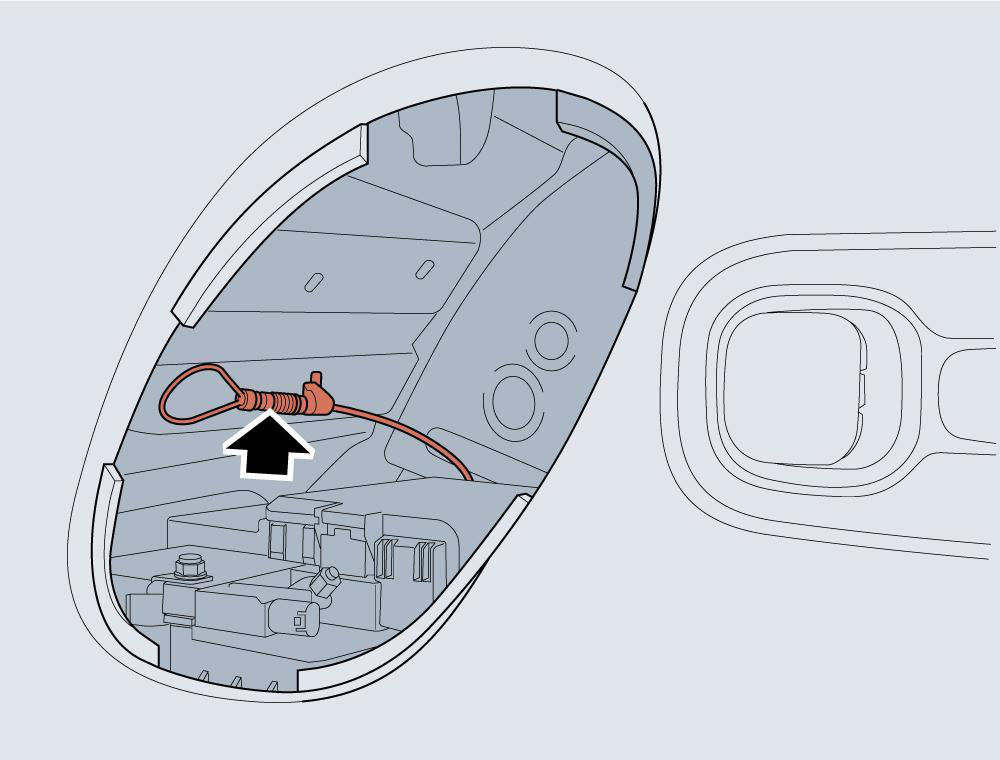

Charging port electronic lock opening in emergency In cases where the automatic unlock of charging port electronic lock fails, you can release the charge gun locking device by pulling the emergency release cable. Open the access port on the left side of the loadspace to expose the release cable for the charging gun
lock (pull ring - black).
