High-voltage System

Chapter 1 · Manual page 10

  • There are two kinds of high-voltage power supplies (AC and DC) in the high-voltage system of the vehicle (up to 435V- 897.6V or so). High voltage components are fitted with warning labels, always read and observe any instructions printed on these labels.
  • To avoid personal injury, non-professional maintenance personnel are prohibited from contacting, dismantling or fitting any component of the high-voltage system without permission.

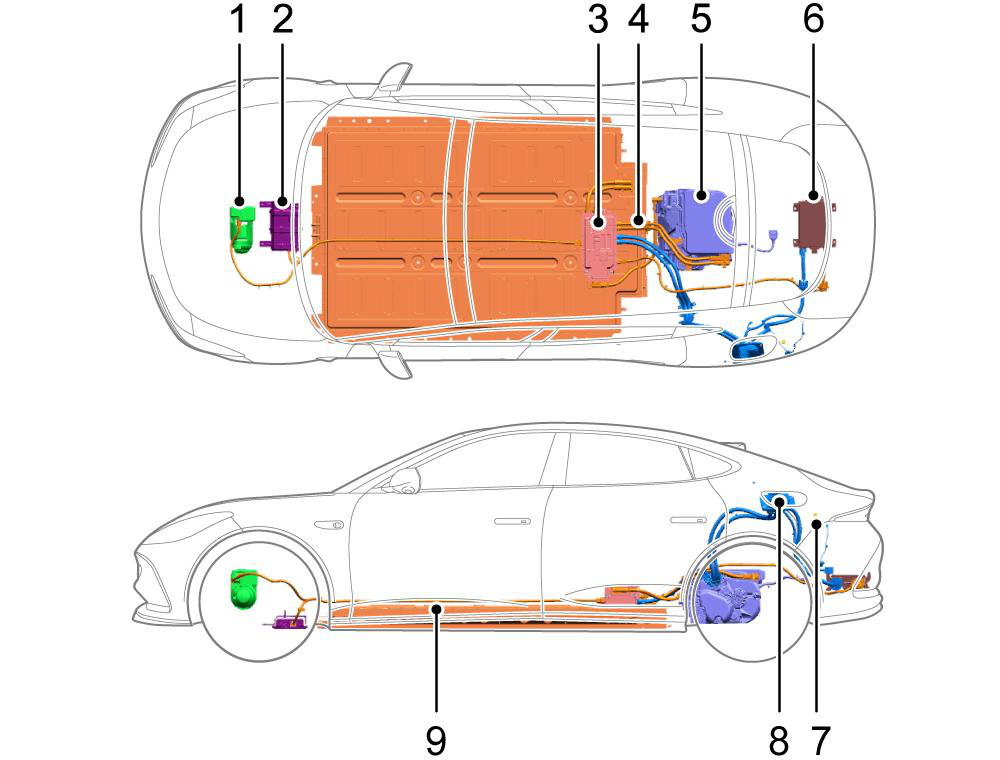

High-voltage system components layout - 2WD Diagram showing: Electric A/C Compressor

  1. Electric A/C Compressor
  2. Battery Heater
  3. High-voltage Power Distribution Unit
  4. High-voltage Harness
  5. Rear Electric Drive Unit
  6. Combined Charging Unit
  7. Manual Service disconnect device
  8. Charging Port

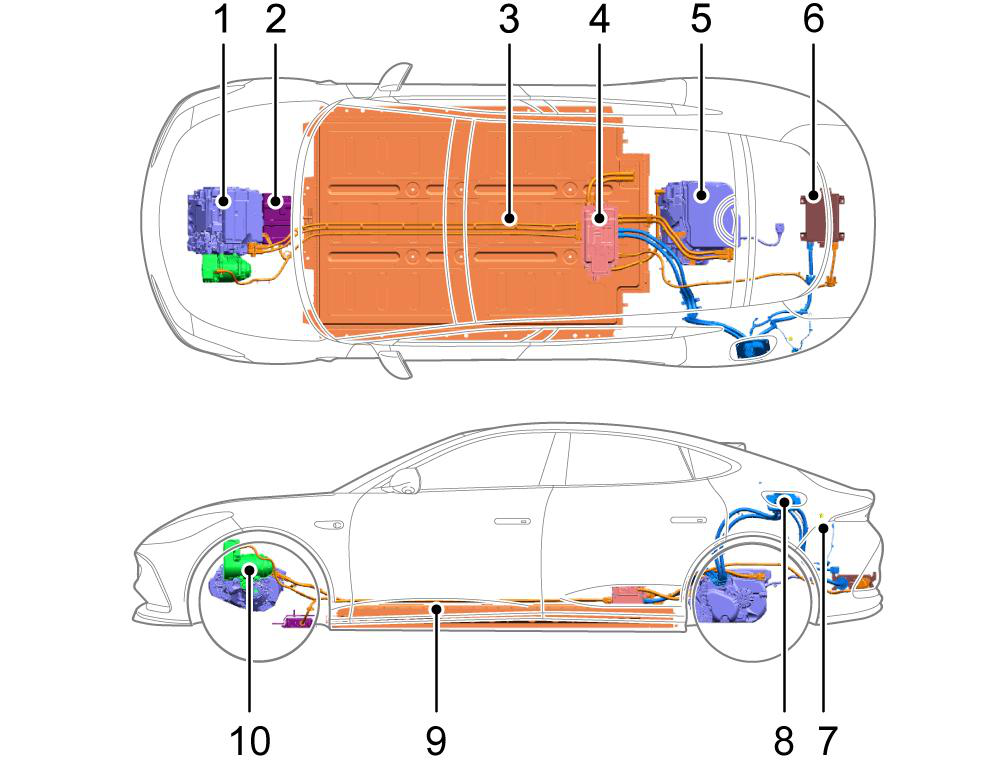

  9. High-voltage Battery Pack High-voltage system components layout - 4WD Diagram showing: Front Electric Drive Unit
  10. Front Electric Drive Unit
  11. Battery Heater
  12. High-voltage Harness
  13. High-voltage Power Distribution Unit
  14. Rear Electric Drive Unit
  15. Combined Charging Unit
  16. Manual Service disconnect device
  17. Charging Port
  18. High-voltage Battery Pack
  19. Electric A/C Compressor
