Ventilation
Chapter 3 · Manual page 125

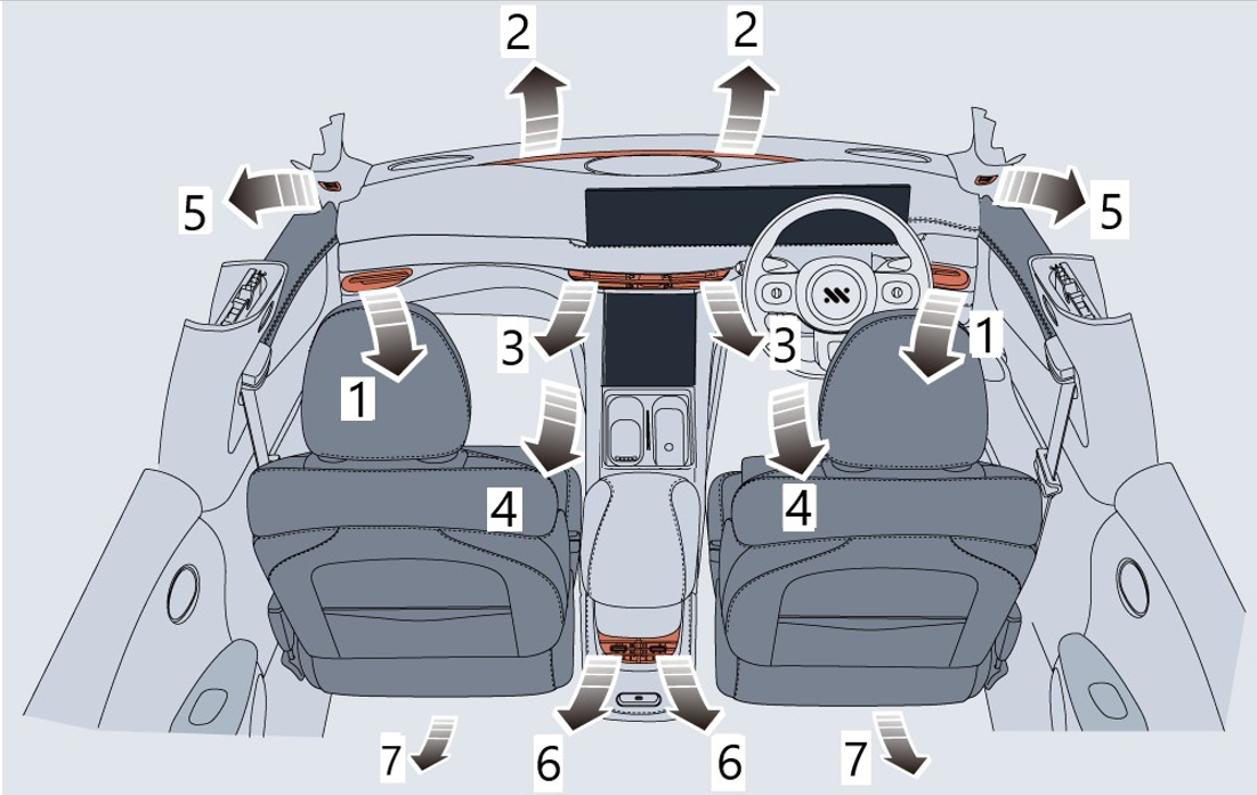

- Front Face Side Vents
- Front Windscreen Vents
- Front Face Central Vents
- Front Footwell Vents
- Front Window Side Vents
- Rear Face Vents
- Rear Footwell Vents
The A/C system is used to adjust the temperature, volume, humidity and cleanness of the air inside the car. Fresh air is drawn in through the air intake grille under the front windscreen and the A/C filter element. Always keep the air intake grille clear of obstructions such as leaves, snow or ice.
A/C Filter Element The A/C filter element is used to filter the air. To remain fully effective, the filter element should be replaced at the recommended
service interval.

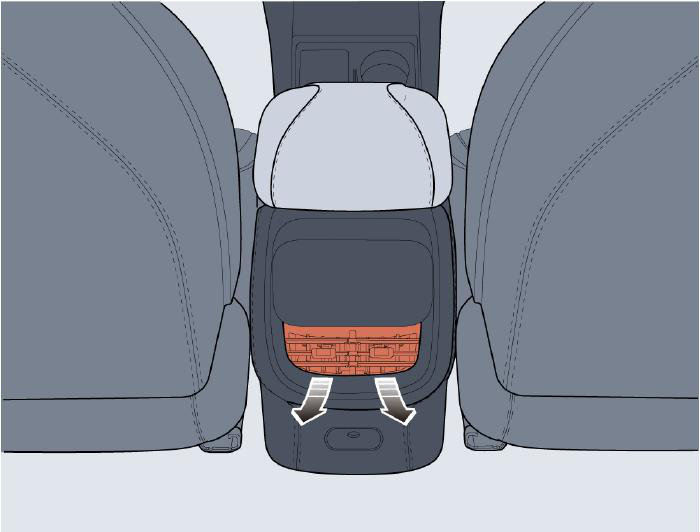

Vents Adjustment Rear Face Vent Adjustment
Slide the knob in the centre of the louvres from side to side to open or close the vent. Direct the air flow by moving the knob up and down, or from side to side.
The front face vents can be operated via the central screen. Refer to the description in “Air Conditioning - Control Interface Front Face Vent Adjustment” for details.
