Seat Belt Height Adjustment

Chapter 4 · Manual page 172

DO NOT adjust the seat belt height whilst driving.

Make sure the seat belt upper anchor point has been adjusted to the correct height and locked in place, injury or death may be caused by incorrect adjustment in the event of a collision.

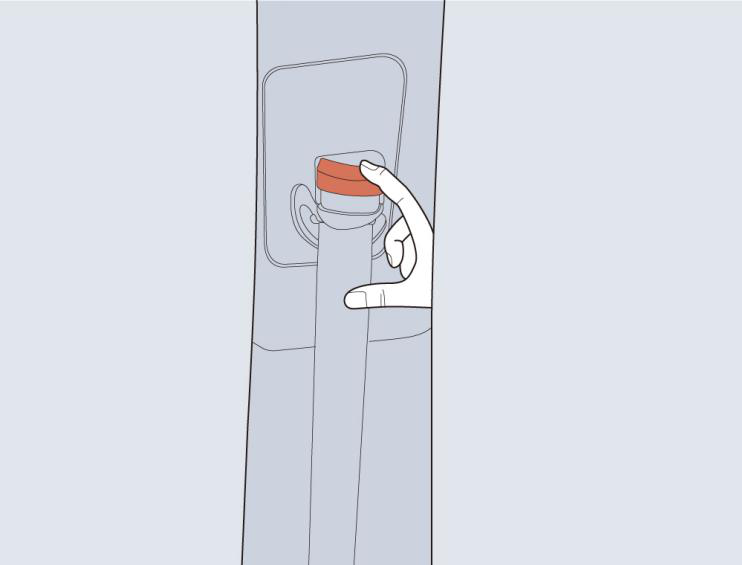

Illustration: Seat Belt Height Adjustment The trim panel beside the front seat of the vehicle is equipped with a seat belt upper anchor point adjuster to adjust the height of the shoulder belt, so that the shoulder belt can be correctly positioned on an occupants shoulder. The shoulder belt should be positioned away from the neck and head, however, it must not be positioned below the shoulder. Please follow the instructions below to adjust the seat belt upper anchor point correctly:

  1. Hold the seat belt.
  2. Press the release button and move the height adjuster to desired position. Move the adjuster by pushing the slider.
  3. After moving the adjuster to desired position, release the button and try to move the adjuster downward to determine whether it is locked in place.

Incorrect positioning will reduce the efficiency of the seat belt in the event of a collision or emergency braking.
