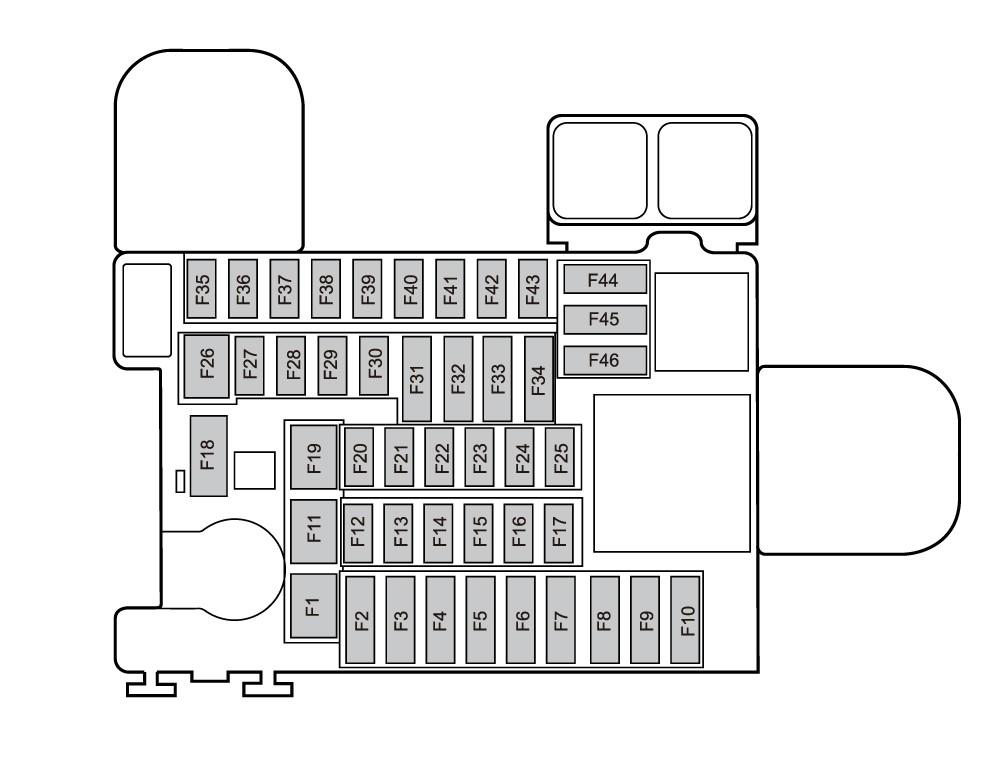

Passenger Compartment Fuse Box
Chapter 6 · Manual page 290
Fuse Check or Replacement
- Power off the vehicle, turn off all electrical appliances, and disconnect the negative battery cable.
- Remove the driver side trim panel.
- Hold the fuse head with a fuse extractor, pull and remove the fuse. Check if any fuse is blown.
- If a fuse is blown, replace it with another fuse of the same ampere value.
| Mark No. | Specification | Function |
| --- | --- | --- |
| F1 | 40A | Blower |
| F2 | 7.5A | Front seat adjustment switch, NFC access module, NFC start module |
| F3 | 15A | Intelligent computing brain module assembly |
| F4 | 15A | Clock spring |
| F5 | 7.5A | Ambient lighting, PM2.5&Incar integrated sensor |
| F6 | 7.5A | Door touch switch module, door opening touch switch, door handle |
| F7 | 5A | Shifter control unit |
| F8 | 7.5A | Electronic toll collection (ETC) module, Rain/Light/Solar Sensor |
| F9 | - | - |
| F10 | 5A | Driver seat lumbar support massage module |
| F11 | 30A | Driver seat control module |
| F12 | - | - |
| F13 | - | - |
| F14 | 10A | Sensing and diagnostic module |
| F15 | - | - |
| F16 | 10A | USB hub |
| F17 | 15A | Driver screen |
| F18 | 10A | Electronic Steering Column Lock |
| F19 | 30A | Front passenger seat control module |
| F20 | 10A | Data link connector (DLC) |
| F21 | 15A | Central screen, front passenger screen |
| F22 | - | - |
| F23 | - | - |
| F24 | - | - |
| F25 | - | - |
| F26 | - | - |
| F27 | - | - |
| F28 | - | - |
| F29 | - | - |
| --- | --- | --- |
| F30 | - | - |
| F31 | 7.5A | Overhead console module, air outlet controller |
| F32 | 7.5A | Bluetooth passive entry and passive start control module, intelligent antenna module, clock spring |
| F33 | 7.5A | Near Field Communication Start Module |
| F34 | 5A | Steering angle sensor |
| F35 | 5A | Alcohol Interlock Control Module |
| F36 | - | - |
| F37 | - | - |
| F38 | - | - |
| F39 | - | - |
| F40 | - | - |
| F41 | - | - |
| F42 | - | - |
| F43 | - | - |
| F44 | 15A | Front power socket, trunk power socket |
| F45 | - | - |
| F46 | 10A | Rear USB port of the centre console |
