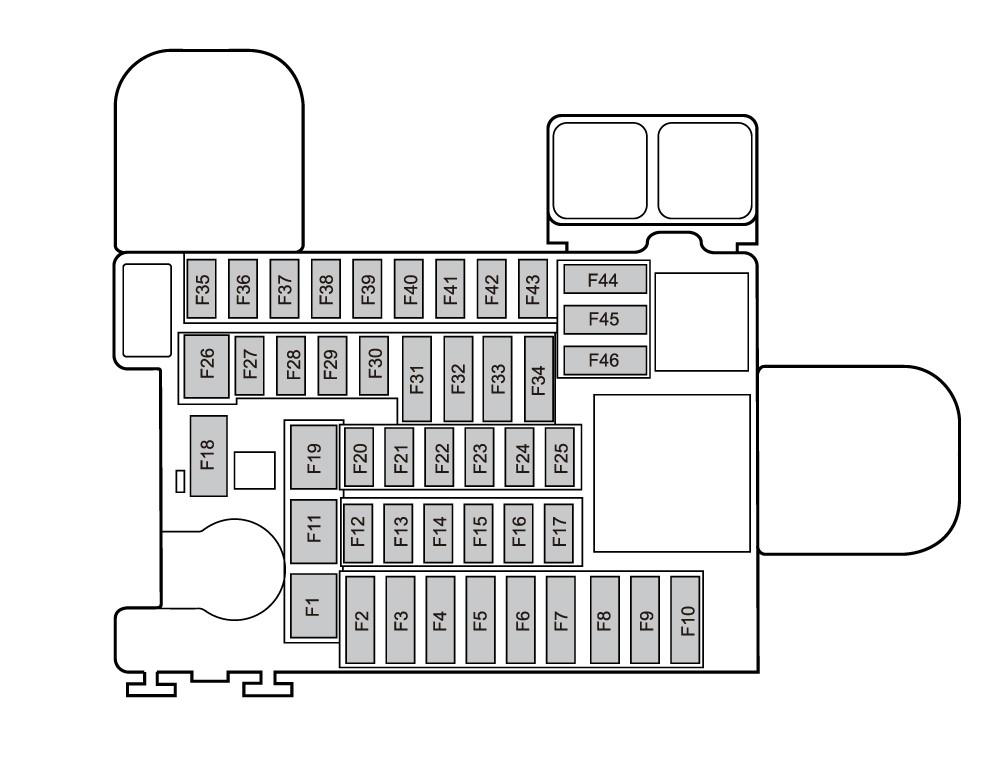

Loadspace Fuse Box

Fuse Check or Replacement

1. Power off the vehicle, turn off all electrical appliances, and disconnect the negative battery cable.
2. Remove the trunk side trim panel.
